Autoclave 45L

Features

1. Fuzzy function to prevent overheat.
2. Accurate temperature controls by Digital PID                          controller.
3. Set time /temperature function
4. In case of temperature sensor disconnection, error                  message appear.
5. Alarm rings when timer end.
6. In case of difference between real temperature and               appeared temperature, user can adjust correctly.
7. When controller setting value is changed by the mistake      of operation, save and recall function can restore it              early.



 8. After setting the temperature and time, just press the start button, then the automatic process occurs. The air inside is           discharged.
 9.  Sterilizing temperature is reached , after sterilizing period. The steam and air pressure are eliminated. And the buzzer          sounds at the end.
10. Stable standing during opening and closing the cover by use of the parking casters.
11. Steam exit and valve placed in buried area not to expose outside.
12. STS #304 used in inside chamber for durability.

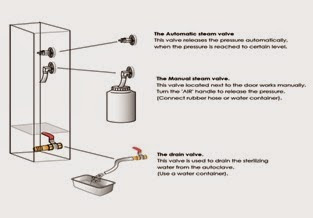

13. For user safety , auto and manual safety valve installed.
14. User can adjust temperature not to raise up certain degree from installed temperature.
15. Threefold tempered safety glass windows for excellent insulation and easy observation
16. Buffering device to enhance door adherence for insulation.
17. Upper vent to emit moist and gas of samples after evaporation.
18. STS #304 used in inside chamber for durability.
19. Circuit breaker for electrical safety


Specification

Spec. / Model
AC-45
Capacity
45ℓ
Temp
Range
Max 125 ° C
Controller
Digital PID Controller
Sensor
Pt100
Pressure
1.5kg /
Outsize(WxDxH,mm)
505x605x1080
Material
External
Steel, Powder coating
Basket
Stainless steel Wire Mesh type 2ea
Electric Requirements
220VAC, 50/60Hz
WATT
2600W

Structure

















Dimension
